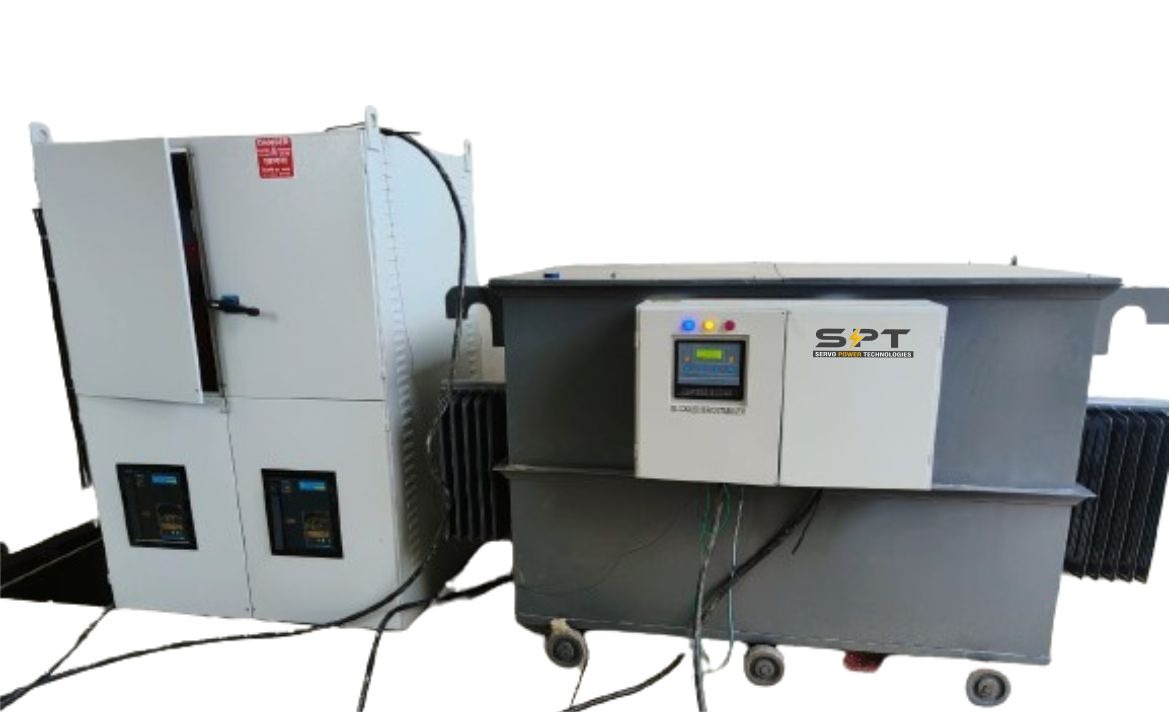

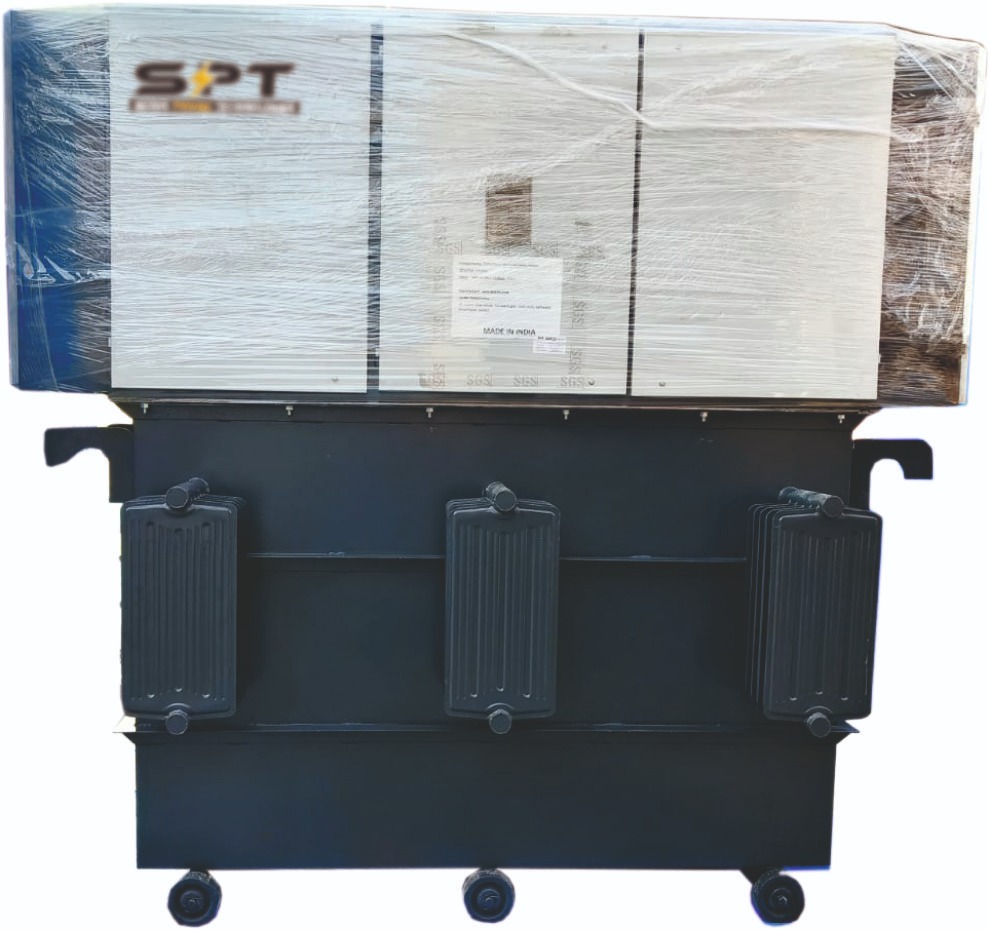

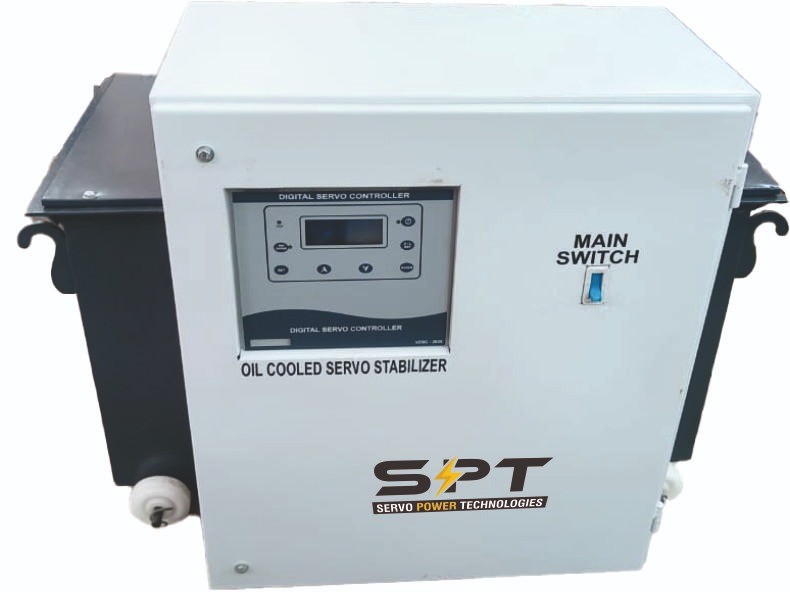

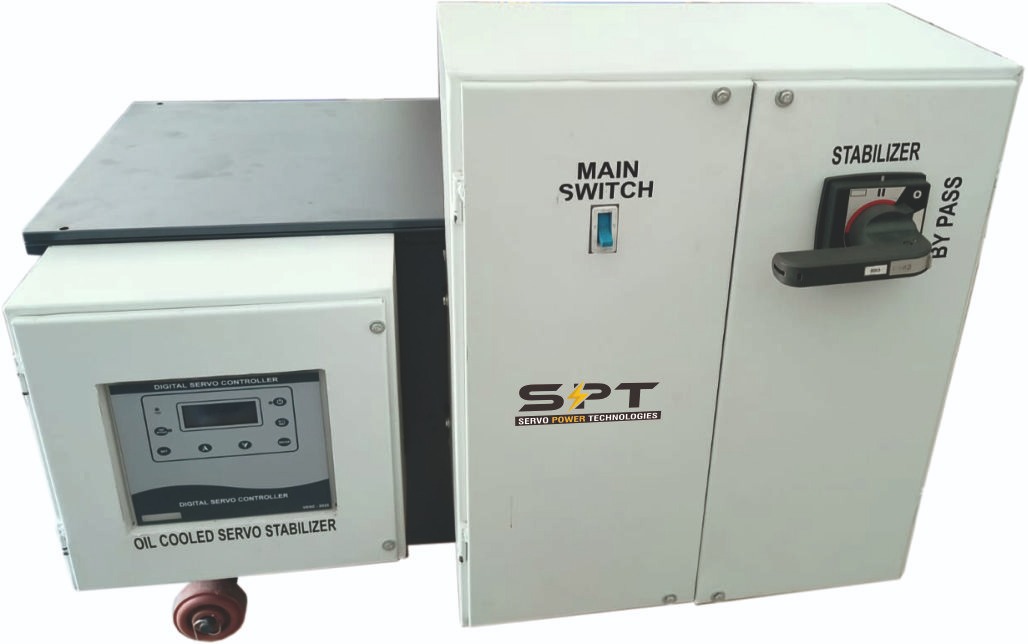

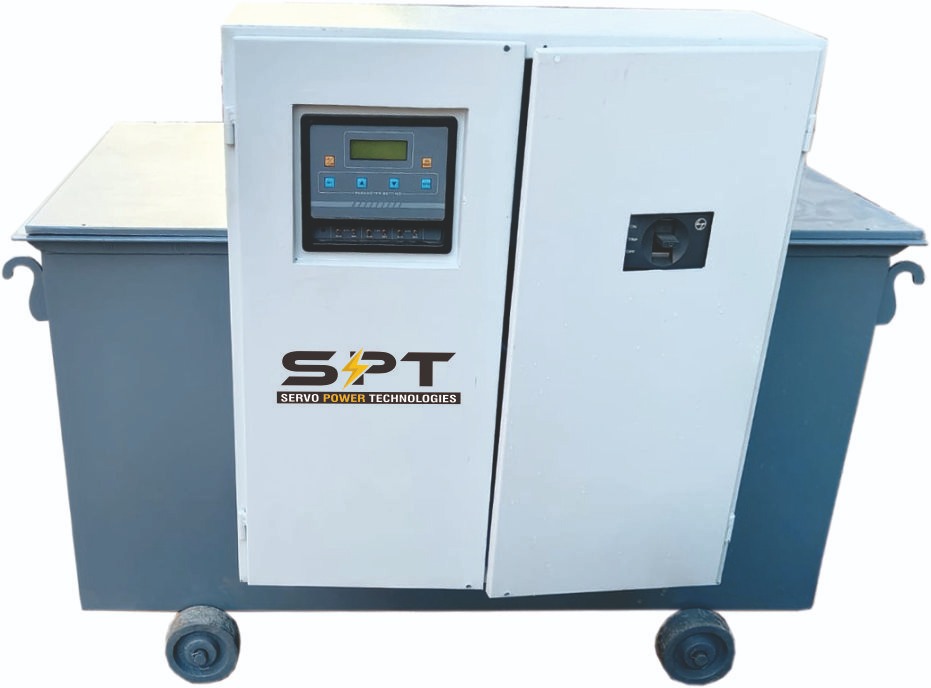

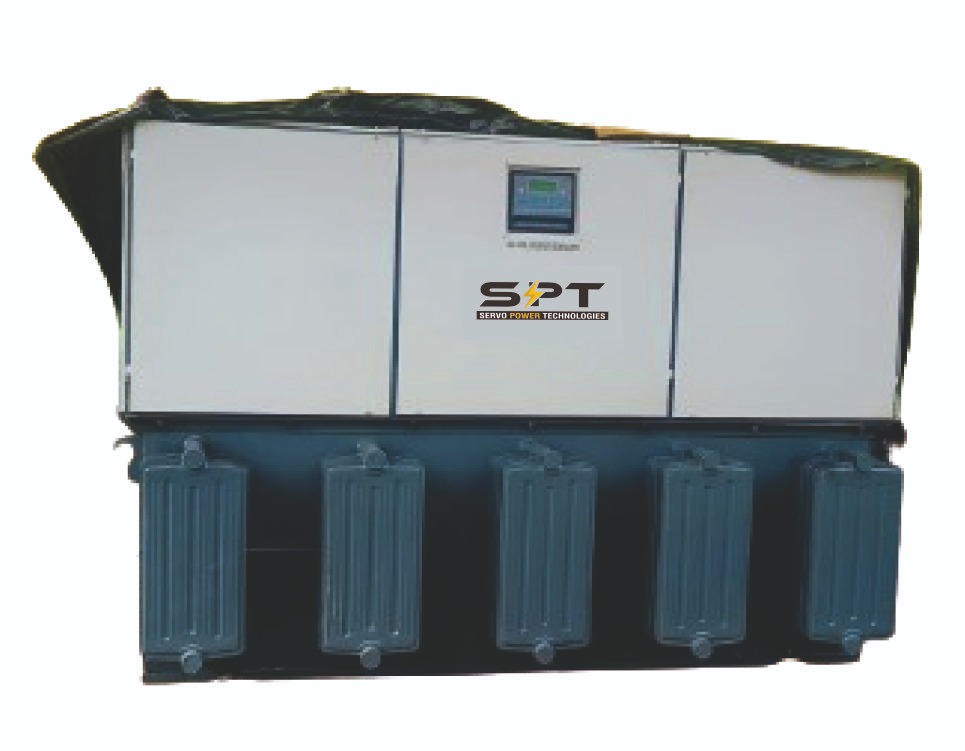

Three Phase Oil Cooled Servo Voltage Stabilizer

A Three Phase Oil Cooled Servo Voltage Stabilizer is a specialized electrical device designed to provide a stable voltage supply in three-phase systems, particularly suited for heavy-duty industrial and commercial applications. The oil cooling mechanism helps in better heat dissipation, making it suitable for environments with high power demands and continuous operation. Here’s an in-depth look at this type of stabilizer:

Key Features and Components:

Servo Motor:

- Function: Adjusts the voltage by moving a variable transformer (variac) to maintain a constant output voltage.
- Benefit: Provides precise control over voltage regulation, ensuring stability.
Buck/Boost Transformer:
- Function: Works with the variac to either increase (boost) or decrease (buck) the voltage as needed.
- Benefit: Compensates for voltage variations, ensuring a stable output.
Microcontroller/Control Circuit:
- Function: Monitors the input and output voltage and controls the servo motor’s movements.
- Benefit: Enhances accuracy and speed in voltage correction.
Voltage Sensing Circuit:
- Function: Detects the input voltage and sends signals to the control circuit.
- Benefit: Provides real-time monitoring for immediate voltage adjustments.
Oil Cooling System:
- Function: Uses oil as a cooling medium to dissipate heat generated by the stabilizer.
- Benefit: Offers efficient cooling, making it suitable for high-capacity and continuous operations.
Display Panel:

- Function: Shows input and output voltage levels, and other operational parameters.
- Benefit: Allows users to monitor the stabilizer’s performance easily.

Benefits:

Voltage Regulation: Protects sensitive electronic equipment from voltage fluctuations, preventing damage and extending lifespan.
Improved Power Quality: Ensures consistent power supply, crucial for the smooth operation of machinery and appliances.
High Efficiency: Reduces energy losses due to voltage fluctuations, leading to more efficient power consumption.
Extended Equipment Life: Prevents electrical components from exposure to high voltage, reducing wear and tear and extending their operational life.
Reduced Downtime: Minimizes interruptions in industrial and commercial operations by maintaining stable voltage levels.
Enhanced Cooling: Oil cooling provides better heat dissipation, which is essential for high-power applications and continuous operation.

Applications:

Heavy Industrial Machinery:
- Example: Large CNC machines, heavy-duty manufacturing equipment.
- Benefit: Ensures consistent voltage for optimal performance and reduces the risk of machinery damage.
Commercial Complexes:
- Example: Large office buildings, shopping malls, data centers.
- Benefit: Stabilizes voltage for HVAC systems, lighting, and office equipment, ensuring smooth operations.
Medical Facilities:
- Example: Hospitals, diagnostic centers.
- Benefit: Provides stable power supply to prevent malfunction or damage to critical medical devices.
Telecommunication Infrastructure:
- Example: Large data centers, communication hubs.
- Benefit: Maintains stable voltage to ensure uninterrupted communication services.
Educational Institutions:

- Example: Universities, research facilities.
- Benefit: Protects sensitive electronic equipment used in academic and research settings.

Installation and Maintenance:

Installation:
- Should be carried out by qualified technicians to ensure proper setup and safety.
- Requires adequate space for proper ventilation and cooling.
- Should be placed on a stable, vibration-free surface.
Maintenance:

- Regular inspection of oil levels and quality to ensure efficient cooling.
- Periodic cleaning and replacement of oil filters.
- Checking electrical connections and components for wear and tear.
- Calibration of control circuits and sensors to maintain accurate voltage regulation.

The Three Phase Oil Cooled Servo Voltage Stabilizer, especially models like SCVSOC100-200, is essential for maintaining voltage stability in high-power and continuous operation environments. Its advanced components and efficient oil cooling system provide precise voltage regulation, protect sensitive equipment, improve power quality, and extend the lifespan of connected devices. Proper installation and regular maintenance ensure optimal performance and longevity of the stabilizer.
