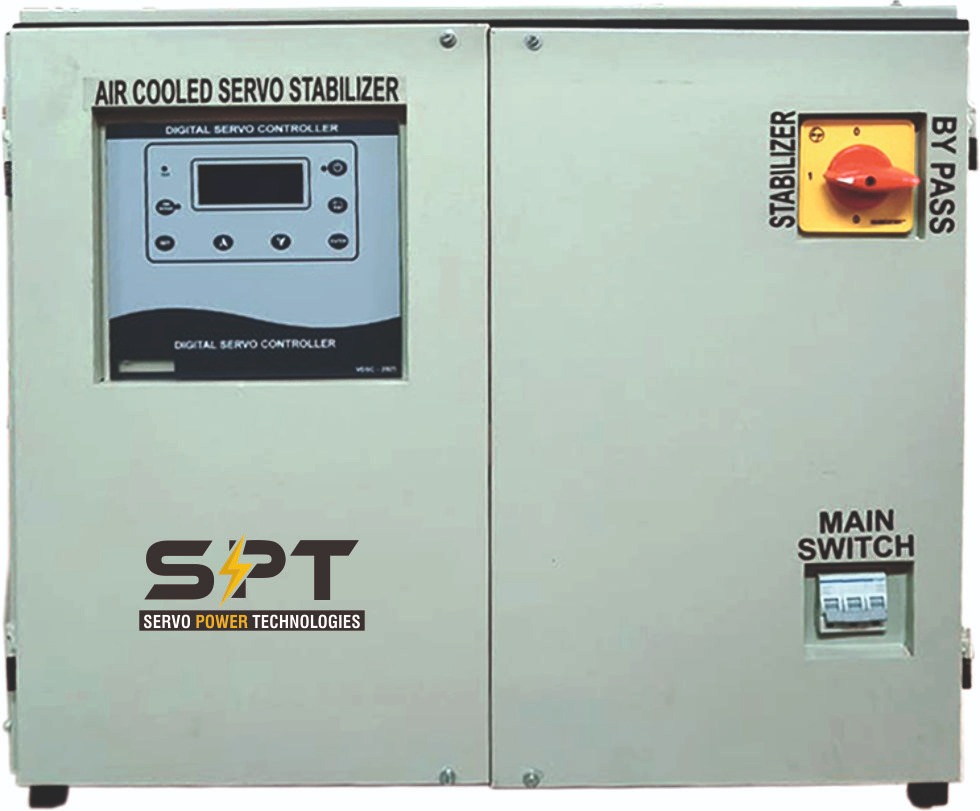

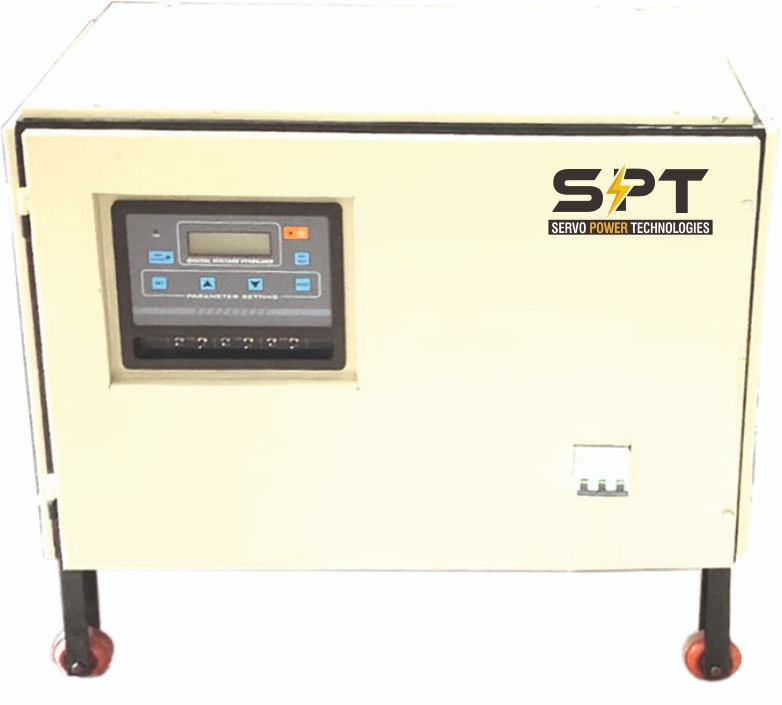

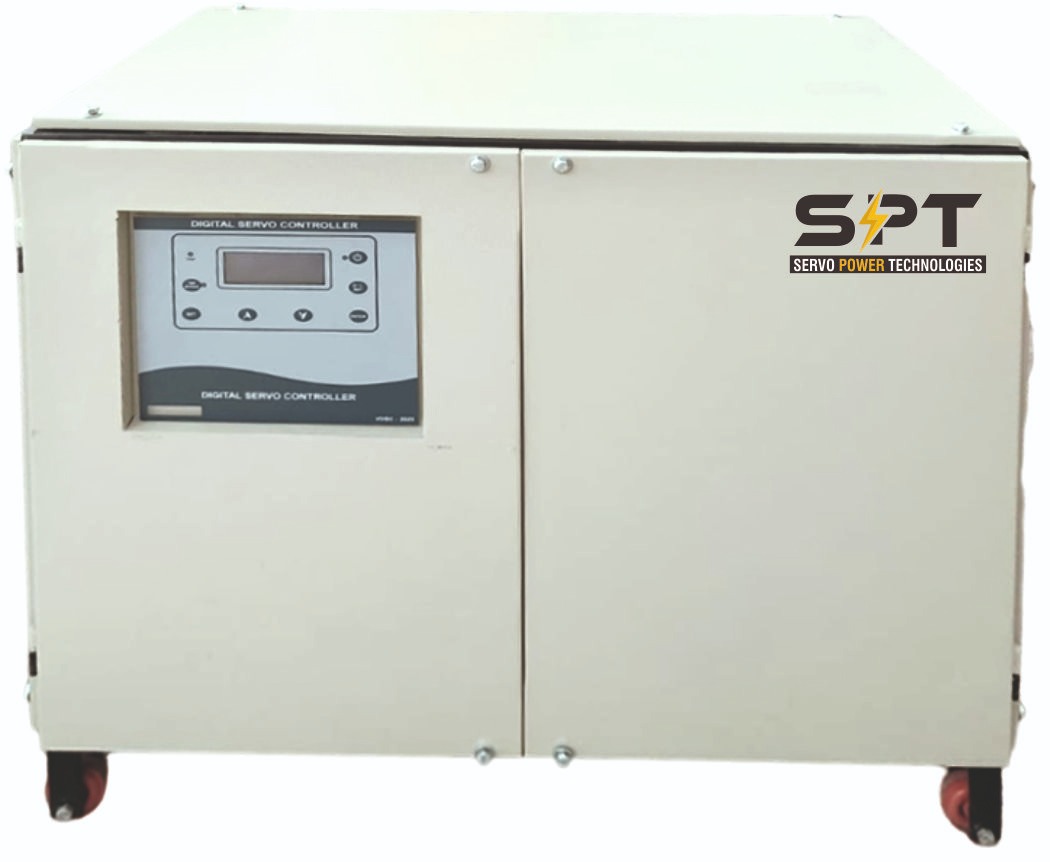

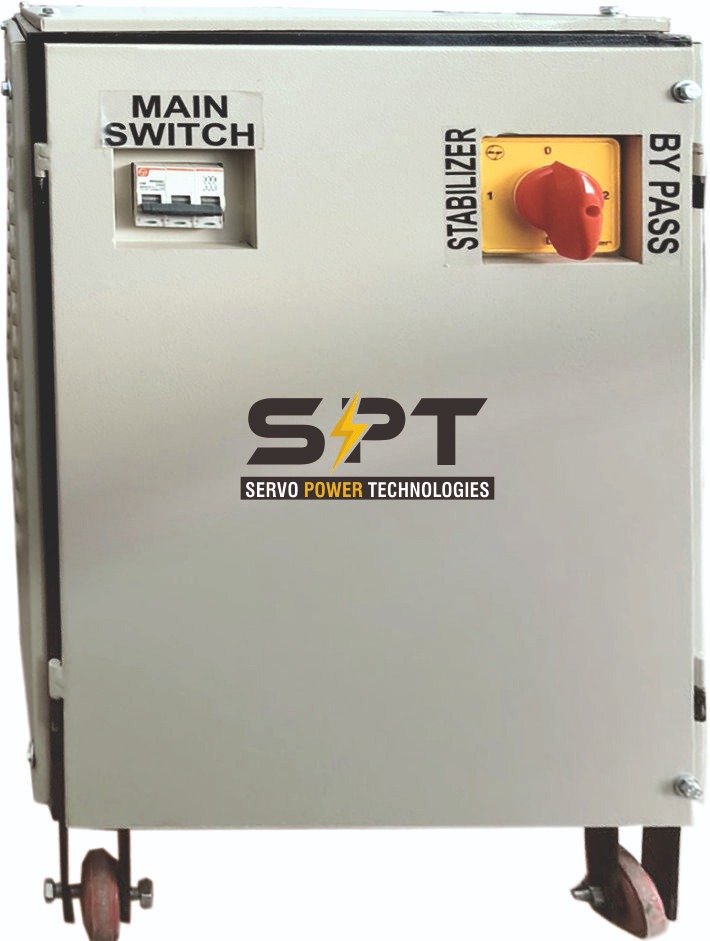

Three Phase Air Cooled Servo Voltage Stabilizer

A Three Phase Air Cooled Servo Voltage Stabilizer is an electrical device designed to maintain a stable voltage level to protect various electrical equipment from voltage fluctuations. Here’s a detailed description:

Key Features and Components:

Servo Motor:
- Function: Adjusts the voltage by moving a variable transformer (variac) to maintain a constant output voltage.
- Benefit: Provides precise control over voltage regulation, ensuring stability.
Buck/Boost Transformer:
- Function: Works with the variac to either increase (boost) or decrease (buck) the voltage as needed.
- Benefit: Compensates for voltage variations, ensuring a stable output.
Microcontroller/Control Circuit:
- Function: Monitors the input and output voltage and controls the servo motor’s movements.
- Benefit: Enhances accuracy and speed in voltage correction.
Voltage Sensing Circuit:
- Function: Detects the input voltage and sends signals to the control circuit.
- Benefit: Provides real-time monitoring for immediate voltage adjustments.
Cooling System (Air Cooled):
- Function: Uses fans or natural convection to dissipate heat generated by the stabilizer.
- Benefit: Prevents overheating, ensuring reliable performance and longevity.
Display Panel:

- Function: Shows input and output voltage levels, and other operational parameters.
- Benefit: Allows users to monitor the stabilizer’s performance easily.

Benefits:

Voltage Regulation: Protects sensitive electronic equipment from voltage fluctuations, preventing damage and extending lifespan.
Improved Power Quality: Ensures consistent power supply, crucial for smooth operation of machinery and appliances.
Energy Efficiency: Reduces energy losses due to voltage fluctuations, leading to more efficient power consumption.
Extended Equipment Life: Prevents electrical components from exposure to high voltage, reducing wear and tear and extending their operational life.
Reduced Downtime: Minimizes interruptions in industrial and commercial operations by maintaining stable voltage levels.

Applications:

Industrial Machinery: Protects machines from voltage surges and drops, ensuring continuous and efficient operation.
Commercial Establishments: Stabilizes voltage for office equipment, HVAC systems, and lighting.
Medical Equipment: Ensures the safe operation of sensitive medical devices.
Telecommunication Equipment: Provides stable power to communication systems, preventing disruptions.

A Three Phase Air Cooled Servo Voltage Stabilizer is essential for maintaining voltage stability in various applications, ensuring the protection and efficient operation of electrical equipment. Its components work together to provide precise voltage regulation, improving power quality and extending the life of connected devices.
